IRLU3717PBF - HEXFET Power MOSFET

Product Overview

International Rectifier

Part number	IRLU3717PBF
Manufacturer	International Rectifier
File Size	289.13 KB
Description	HEXFET Power MOSFET
Datasheet	IRLU3717PBF Datasheet
Note	This datasheet PDF includes multiple part numbers: IRLU3717PBF, IRLR3717PBF. Please refer to the document for exact specifications by model.

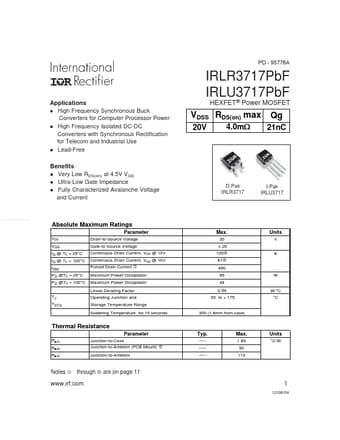

Additional preview pages of the IRLU3717PBF datasheet.

) + ⎛ Qoss × Vin × f ⎞ ⎝ 2 ⎠ ⎞ ⎞ ⎛ Qgs 2 f⎟ + ⎜ I × × Vin × f ⎟ ig ⎠ ⎝ ⎠ This simplified loss equation includes the terms Qgs2 and Qoss which are new to Power MOSFET data sheets. Qgs2 is a sub element of traditional gate-source charge that is included in all MOSFET data sheets. The importance of splitting this gate-source charge into two sub elements, Qgs1 and Qgs2, can be seen from Fig 16. Qgs2 indicates the charge that must be supplied by the gate driver between the time that the threshold vo.
