IRSM836-025MA Datasheet, Ipm, International Rectifier

IRSM836-025MA Features

  • Ipm
  • Integrated gate drivers and bootstrap functionality
  • Open-source for leg-shunt current sensing
  • Protection shutdown pin
  • Low RDS(on) Trench FREDFET

PDF File Details

Part number:

IRSM836-025MA

Manufacturer:

International Rectifier

File Size:

698.54kb

Download:

📄 Datasheet

Description:

Integrated power module - ipm. IRSM836-025MA is a 2A, 500V Integrated Power Module (IPM) designed for advanced appliance motor drive applications such as energy eff

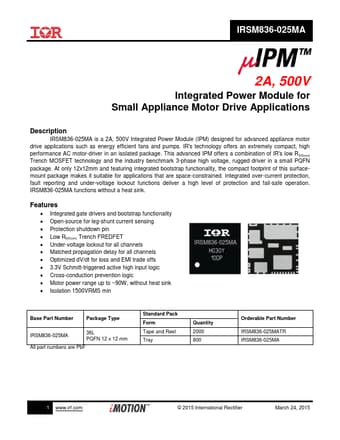

Datasheet Preview: IRSM836-025MA 📥 Download PDF (698.54kb)
Page 2 of IRSM836-025MA Page 3 of IRSM836-025MA

IRSM836-025MA Application

  • Applications Description IRSM836-025MA is a 2A, 500V Integrated Power Module (IPM) designed for advanced appliance motor drive applications such as
