IRSM836-035MA - Integrated Power Module - IPM

International Rectifier

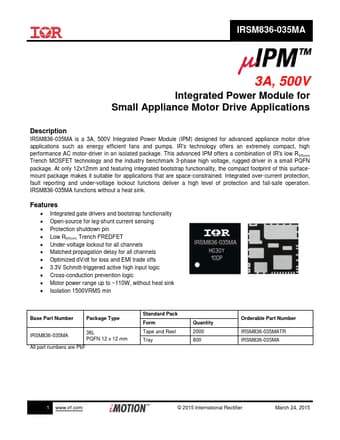

IRSM836-035MA Datasheet Preview — Preview of IRSM836-035MA PDF

Datasheet Details

Part number	IRSM836-035MA
Manufacturer	International Rectifier ↗
File Size	781.63 KB
Description	Integrated Power Module - IPM
Datasheet	IRSM836-035MA_InternationalRectifier.pdf

IRSM836-035MA Product details

Description

IRSM836-035MA is a 3A, 500V Integrated Power Module (IPM) designed for advanced appliance motor drive applications such as energy efficient fans and pumps.

Features

Integrated gate drivers and bootstrap functionality.
Open-source for leg-shunt current sensing.
Protection shutdown pin.
Low RDS(on) Trench.
