IRSM836-035MB Datasheet - International Rectifier

Integrated Power Module - IPM

IRSM836-035MB Features

* Integrated gate drivers and bootstrap functionality Suitable for single shunt sensing Protection shutdown pin Low RDS(on) Trench FREDFET Under-voltage lockout for all channels Matched propag

IRSM836-035MB General Description

IRSM836-035MB is a 3A, 500V Integrated Power Module (IPM) designed for advanced appliance motor drive applications such as energy efficient fans and pumps. IR's technology offers an extremely compact, high performance AC motor-driver in an isolated package. This advanced IPM offers a combination of .

IRSM836-035MB Datasheet (702.89 KB)

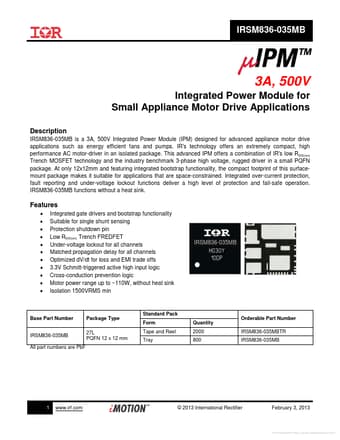

Preview of IRSM836-035MB PDF

Datasheet Details

Part number:

IRSM836-035MB

Manufacturer:

International Rectifier

File Size:

702.89 KB

Description:

Integrated power module - ipm.
