IRU3013

VRM 8.5 COMPATIBLE 5-BIT PROGRAMMABLE SYNCHRONOUS BUCK CONTROLLER IC

IRU3013 Features

* Meets Latest VRM 8.5 Specification Provides Single Chip Solution for Vcore, 1.2V AGTL+, 1.8V and VDDQ On-Board 5-Bit DAC and Decoder programs the output voltage from 1.050V to 1.825V Loss-less Short Circuit Protection Synchronous operation allows maximum efficiency Patented architecture allows fixed

IRU3013 General Description

The IRU3013 controller IC is specifically designed for Intel Pentium IIIā„¢ microprocessor applications as described in the VRM 8.5 specification. The IC provides a single chip solution for the Vcore, 1.2V AGTL+, 1.8V and a third uncommitted LDO controller that can be used either as 1.2V power good de.

IRU3013 Datasheet (71.29 KB)

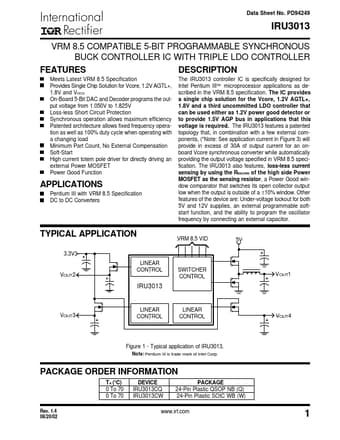

Preview of IRU3013 PDF

Datasheet Details

Part number:

IRU3013

Manufacturer:

International Rectifier

File Size:

71.29 KB

Description:

Vrm 8.5 compatible 5-bit programmable synchronous buck controller ic.
