IRU3034

8-PIN PWM SWITCHER CONTROLLER IC

IRU3034 Features

* 8-Pin SOIC switching controller with HICCUP current limiting reduces diode power dissipation to less than 1% of normal operation Soft-Start capacitor allows for smooth output voltage ramp up On-Board MOSFET Driver Fastest transient response of any controller method. (0 to 100% Duty Cycle in 100ns)

IRU3034 General Description

The IRU3034 IC provides a low cost switching controller with true short circuit protection all in a compact 8-pin surface mount package, providing a low cost switching solution for dual supply processor applications that require switching regulator for the 3.3V supply such as the applications with A.

IRU3034 Datasheet (145.68 KB)

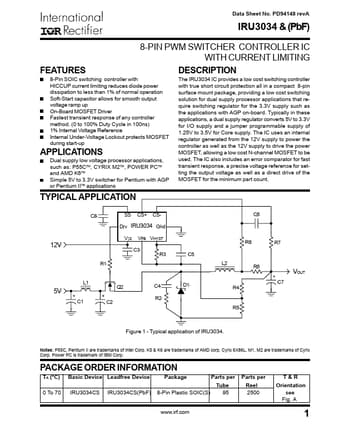

Preview of IRU3034 PDF

Datasheet Details

Part number:

IRU3034

Manufacturer:

International Rectifier

File Size:

145.68 KB

Description:

8-pin pwm switcher controller ic.
