M3G12015D - HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER

Product Overview

International Rectifier

Part number	M3G12015D
Manufacturer	International Rectifier
File Size	434.14 KB
Description	HYBRID-HIGH RELIABILITY RADIATION HARDENED DC-DC CONVERTER
Datasheet	M3G12015D Datasheet
Note	This datasheet PDF includes multiple part numbers: M3G12015D, M3G12003R3S. Please refer to the document for exact specifications by model.

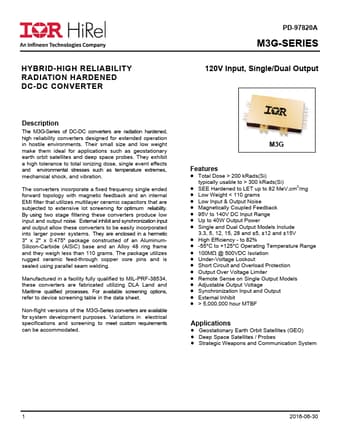

Additional preview pages of the M3G12015D datasheet.

The M3G-Series of DC-DC converters are radiation hardened, high reliability converters designed for extended operation in hostile environments.

 Total Dose > 200 kRads(Si) typically usable to > 300 kRads(Si).
 SEE Hardened to LET up to 82 MeV. cm2/mg.
 Low Weight < 110 grams.
 Low Input & Output Noise.
 Magnetically Coupled Feedback.
 95V to 140V DC Input Range.
 Up to 40W Output Power.
 Single and Dual Output Models Include 3.3, 5, 12, 15, 28 and ±5, ±12 and ±15V.
 High Efficiency - to 82%.
 -55°C to +125°C Operating Temperature Range.
 100M @ 500VDC Isolation.
 Under-Voltage.
