M3GB12003R3S - Hybrid - High Reliability Radiation Hardened DC-DC Converter

Product Overview

Micross

Datasheet Details

Part number	M3GB12003R3S
Manufacturer	Micross
File Size	814.31 KB
Description	Hybrid - High Reliability Radiation Hardened DC-DC Converter
Datasheet	M3GB12003R3S Datasheet

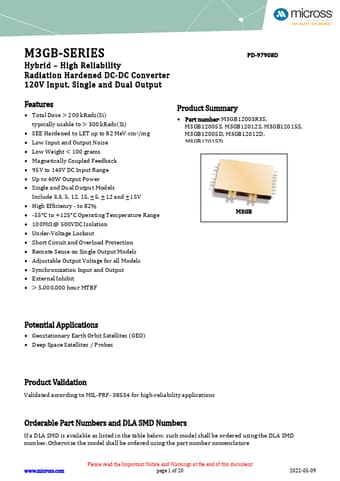

Additional preview pages of the M3GB12003R3S datasheet.

Product details

Description

and Circuit Description Table 1 Ordering Information Reference IR Base Model M3GB12003R3S/CKA M3GB12003R3S/CKC M3GB12005S/CKA M3GB12005S/CKC M3GB12005S/CKRA M3GB12005S/CKRC M3GB12012S/CKA M3GB12012S/CKC Orderable Part Number M3GB12003R3S/CKA M3GB12003R3S/CKC 5962-2121801KXA 5962-2121801KXC 5962R2121801KXA 5962R2121801KXC 5962-1920201KXA 5962-1920201KXC M3GB12012S/CKRA 5962R1920201KXA M3GB12012S/CKRC 5962R1920201KXC M3GB12015S/CKA M3GB12015S/CKA M3GB12015S/CKC M3GB12015S/CKC M3GB1200

Features

Total Dose > 200 kRads(Si) typically usable to > 300 kRads(Si).
SEE Hardened to LET up to 82 MeV.
cm2/mg.
Low Input and Output Noise.
Low Weight < 100 grams.
Magnetically Coupled Feedback.
95V to 140V DC Input Range.
Up to 40W Output Power.
Single and Dual Output Models Include 3.3, 5, 12, 15, ±5, ±12 and ±15V.
High Efficiency - to 82%.
-55°C to +125°C Operating Temperature Range.
100MΩ @ 500VD.
