M3GB12015D Hybrid - High Reliability Radiation Hardened DC-DC Converter

and Circuit Description Table 1 Ordering Information Reference IR Base Model M3GB12003R3S/CKA M3GB12003R3S/CKC M3GB12005S/CKA M3GB12005S/CKC M3GB12005S/CKRA M3GB12005S/CKRC M3GB12012S/CKA M3GB12012S/CKC Orderable Part Number M3GB12003R3S/CKA M3GB12003R3S/CKC 5962-2121801KXA 5962-2121801KXC 5962R.

M3GB12015D Features

* Total Dose > 200 kRads(Si) typically usable to > 300 kRads(Si)

* SEE Hardened to LET up to 82 MeV

* cm2/mg

* Low Input and Output Noise

* Low Weight < 100 grams

* Magnetically Coupled Feedback

* 95V to 140V DC Input Range

* Up to 40W Output

M3GB12003R3S-Micross.pdf

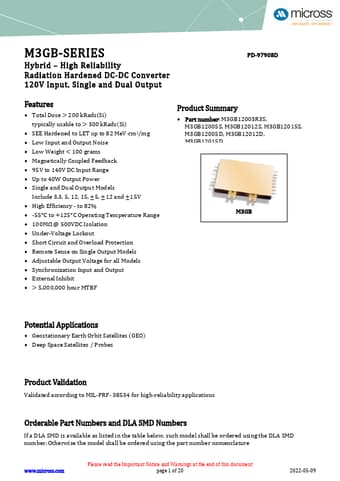

M3GB12015D Datasheet Preview — This datasheet PDF includes multiple part numbers: M3GB12015D, M3GB12003R3S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M3GB12015D, M3GB12003R3S

Manufacturer:

Micross

File Size:

814.31 KB

Description:

Hybrid - high reliability radiation hardened dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: M3GB12015D, M3GB12003R3S.
Please refer to the document for exact specifications by model.
