MBRB1045 - SCHOTTKY RECTIFIER

This page provides the datasheet information for the MBRB1045, a member of the MBRB1035 SCHOTTKY RECTIFIER family.

Datasheet Summary

Features

  • This Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150° C junction temperature. Typical.

📥 Download Datasheet

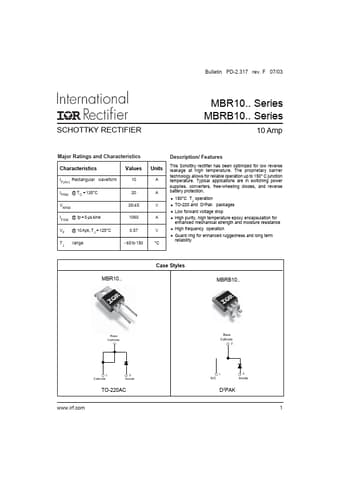

Datasheet preview – MBRB1045

📁 Similar Datasheet

  • MBRB1045 - High Performance Schottky Rectifier (Vishay)
  • MBRB1045 - SCHOTTKY RECTIFIER (SMC Diode)
  • MBRB1045 - Schottky Barrier Rectifier (Inchange Semiconductor)
  • MBRB1045 - SCHOTTKY RECTIFIER (General Semiconductor)
  • MBRB1045 - Schottky Power Rectifier (ON Semiconductor)
  • MBRB1045 - Schottky Barrier Rectifiers (GOOD-ARK)
  • MBRB1045CT - 10 Amp Schottky Barrier Rectifier 30 to 45 Volts (Micro Commercial Components)
  • MBRB1045CT - SCHOTTKY RECTIFIER (SMC-DIODE)
  • MBRB1045CT - Dual Schottky Barrier Rectifier (First Silicon)
  • MBRB1045CT - 10A Surface Mount High Power Schottky Barrier Rectifiers (CITC)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
Bulletin PD-2.317 rev. F 07/03 SCHOTTKY RECTIFIER MBR10.. Series MBRB10.. Series 10 Amp Major Ratings and Characteristics Characteristics Values IF(AV) Rectangular waveform 10 IFRM @ TC = 135°C 20 VRRM IFSM @ tp = 5 µs sine 35/45 1060 VF @ 10 Apk, TJ = 125°C 0.57 TJ range - 65 to 150 Units A A V A V °C Description/ Features This Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150° C junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
