MBRB1045PbF, MBRB1035PbF SCHOTTKY RECTIFIER

MBRB1045PbF Description

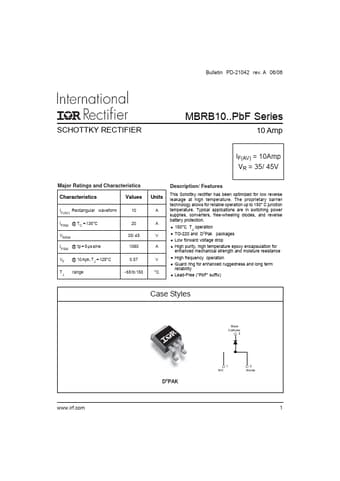

Bulletin PD-21042 rev.A 06/06 SCHOTTKY RECTIFIER MBRB10..PbF Series 10 Amp IF(AV) = 10Amp VR = 35/ 45V Major Ratings and Characteristics Charact.
Features This Schottky rectifier has been optimized for low reverse leakage at high temperature.

MBRB1045PbF Applications

* are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection. 150°C TJ operation TO-220 and D2Pak packages Low forward voltage drop High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance High frequency operation

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRB1045PbF, MBRB1035PbF. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRB1045PbF, MBRB1035PbF
Manufacturer
International Rectifier
File Size
197.35 KB
Datasheet
MBRB1035PbF-InternationalRectifier.pdf
Description
SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: MBRB1045PbF, MBRB1035PbF.
Please refer to the document for exact specifications by model.
