MBRS140TRPBF - SCHOTTKY RECTIFIER

Features

  • Units A V A V °C The MBRS140TRPbF surface-mount Schottky rectifier has been designed for.

📥 Download Datasheet

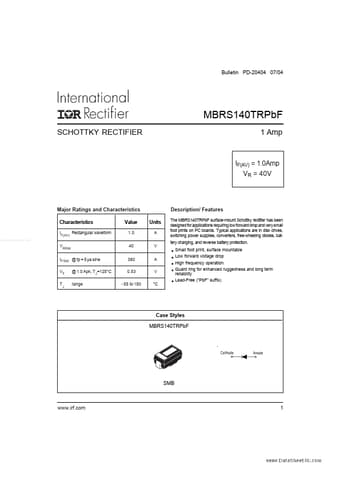

Datasheet preview – MBRS140TRPBF

📁 Similar Datasheet

  • MBRS140T3 - Surface Mount Schottky Power Rectifier (Motorola)
  • MBRS140T3G - Surface Mount Schottky Power Rectifier (ON Semiconductor)
  • MBRS140 - SCHOTTKY POWER RECTIFIER (Fairchild Semiconductor)
  • MBRS140 - SURFACE MOUNT SCHOTTKY BARRIER DIODES (SunMate)
  • MBRS140G - 1.0A Surface Mount Schottky Barrier Rectifiers (American First Semiconductor)
  • MBRS140LT3 - Surface Mount Schottky Power Rectifier (Motorola)
  • MBRS140LT3 - Surface Mount Schottky Power Rectifier (ON Semiconductor)
  • MBRS10100 - Surface Mount Schottky Barrier Rectifiers (Taiwan Semiconductor)
  • MBRS10100CT - Dual Common Cathode Schottky Rectifiers (JGD)
  • MBRS10100CT - Dual Common Cathode Schottky Rectifiers (Taiwan Semiconductor)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
Bulletin PD-20404 07/04 MBRS140TRPbF SCHOTTKY RECTIFIER 1 Amp IF(AV) = 1.0Amp VR = 40V Major Ratings and Characteristics Characteristics IF(AV) Rectangular waveform www.DataSheet4U.com Description/ Features Units A V A V °C The MBRS140TRPbF surface-mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. Typical applications are in disk drives, switching power supplies, converters, free-wheeling diodes, battery charging, and reverse battery protection. Small foot print, surface mountable Low forward voltage drop High frequency operation Guard ring for enhanced ruggedness and long term reliability Lead-Free ("PbF" suffix) Value 1.0 40 380 0.53 - 55 to 150 VRRM I FSM @ tp = 5 µs sine VF TJ @ 1.
