SD603C Datasheet - International Rectifier

SD603C, FAST RECOVERY DIODES

Bulletin I2068 rev.C 04/00 SD603C..C SERIES FAST RECOVERY DIODES .

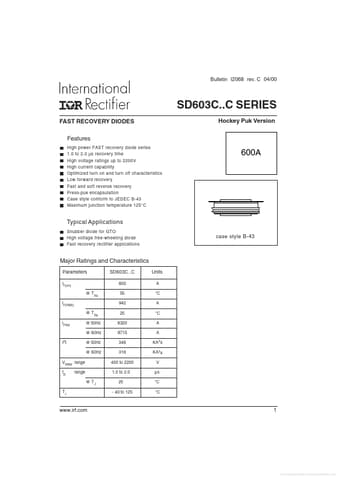

datasheet Preview Page 1 from Datasheet4u.com

SD603C_InternationalRectifier.pdf

SD603C Datasheet Preview — Preview of SD603C PDF

Datasheet Details

Part number:

SD603C

Manufacturer:

International Rectifier

File Size:

224.76 KB

Description:

FAST RECOVERY DIODES

Features

* High power FAST recovery diode series 1.0 to 2.0 µs recovery time High voltage ratings up to 2200V High current capability Optimized turn on and turn off characteristics Low forward recovery Fast and soft reverse recovery Press-puk encapsulation Case style conform to JEDEC B-43 Maximum junction temp

Applications

* Snubber diode for GTO High voltage free-wheeling diode Fast recovery rectifier applications case style B-43 Major Ratings and Characteristics Parameters IF(AV) @ T hs IF(RMS) @ T hs IFSM @ 50Hz @ 60Hz It 2 SD603C. . C 600 55 942 25 8320 8715 346 316 400 to 2200 1.0 to 2.0 Units A °C A °C A A KA2s
