SD603C Fast Recovery Diodes

Vishay

SD603C Description

SD603C..C Series Vishay High Power Products Fast Recovery Diodes (Hockey PUK Version), 600 A .

SD603C Features

* High power FAST recovery diode series
* 1.0 to 2.0 µs recovery time
* High voltage ratings up to 2200 V
* High current capability B-43 RoHS COMPLIANT
* Optimized turn-on and turn-off characteristics
* Low forward recovery
* Fast and soft re

SD603C Applications

* Snubber diode for GTO
* High voltage freewheeling diode
* Fast recovery rectifier applications MAJOR RATINGS AND CHARACTERISTICS PARAMETER IF(AV) IF(RMS) TEST CONDITIONS VALUES 600 Ths Ths 50 Hz 60 Hz 50 Hz 60 Hz Range 55 942 25 8320 8715 346 316 400 to 2200 1.0 to 2.0 TJ

📥 Download Datasheet

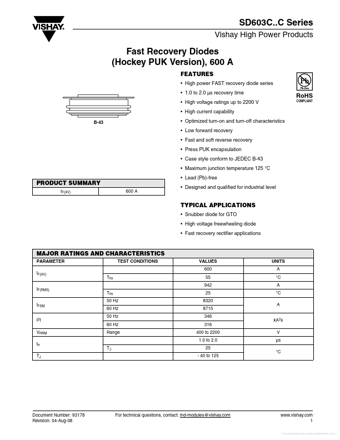

SD603C Datasheet Preview — Preview of SD603C PDF

Datasheet Details

Part number: SD603C
Manufacturer: Vishay ↗
File Size: 452.89 KB
Datasheet: SD603C_Vishay.pdf
Description: Fast Recovery Diodes
