SD600N Standard Recovery Diodes

SD600N Description

SD600N/R Series Vishay Semiconductors Standard Recovery Diodes (Stud Version), 600 A .

SD600N Features

* Wide current range High voltage ratings up to 3200 V High surge current capabilities Stud cathode and stud anode version Standard JEDEC types Compression bonded encapsulations RoHS complaint Lead (Pb)-free Desi

SD600N Applications

* PRODUCT SUMMARY IF(AV) 600 A
* Converters Power supplies Machine tool controls High power drives Medium traction applications MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS SD600N/R 04 to 20 600 TC 92 940 50 Hz 60 Hz 50 Hz 60 Hz Range 1

📥 Download Datasheet

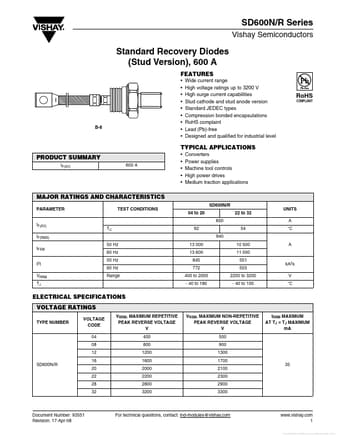

Preview of SD600N PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SD600N
Manufacturer
Vishay ↗
File Size
209.82 KB
Datasheet
SD600N_Vishay.pdf
Description
Standard Recovery Diodes
