LRC-LRF3W-01 Low Range 3W SMT Chip Resistor

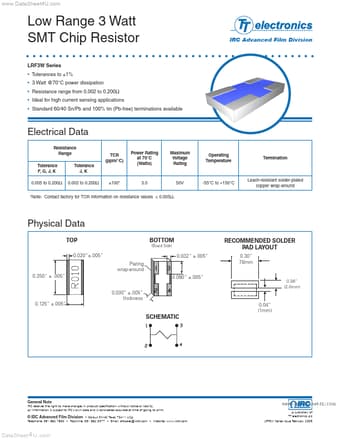

www.DataSheet4U.com Low Range 3 Watt SMT Chip Resistor LRF3W Series Tolerances to ±1% 3 Watt @70°C power dissipation Resistance range from 0.002 to 0.200Ω Ideal for high current sensing applications Standard 60/40 Sn/Pb and 100% tin (Pb-free) terminations available IRC Advanced Film Division Electrical Data Resistance Range Tolerance F, G, J, K 0.005 to 0.200Ω Tolerance J, K 0.002 to 0.200Ω TCR (ppm/°C) Power Rating at 70°C (Watts) Maximum Vol.

LRC-LRF3W_InternationalResistive.pdf

LRC-LRF3W-01 Datasheet Preview — This datasheet PDF includes multiple part numbers: LRC-LRF3W-01, LRC-LRF3W. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LRC-LRF3W-01, LRC-LRF3W

Manufacturer:

International Resistive

File Size:

267.19 KB

Description:

Low range 3w smt chip resistor.

Note:

This datasheet PDF includes multiple part numbers: LRC-LRF3W-01, LRC-LRF3W.
Please refer to the document for exact specifications by model.
