CD40162BMS CMOS Synchronous Programmable 4-Bit Counters

of ‘B’ Series CMOS Devices” Applications * Programmable Binary and Decade Counting * Counter Control/Timers * Frequency Dividing Pinout CD40160BMS, CD40161BMS, CD40162BMS, CD40163BMS TOP VIEW Functional Diagram PE CLEAR 1 CLOCK 2 P1 3 P2 4 P3 5 P4 6 PE 7 VSS 8 16 VDD 15 CA.

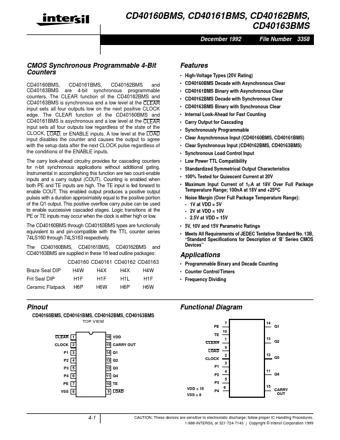

CD40160BMS, CD40161BMS, CD40162BMS, CD40163BMS December 1992 File Number 3358 CMOS Synchronous Programmable 4-Bit Counters CD40160BMS, CD40161BMS, CD40162BMS and CD40163BMS are 4-bit synchronous programmable counters. The CLEAR function of the CD40162BMS and CD40163BMS is synchronous and a low level at the CLEAR input sets all four outputs low on the next positive CLOCK edge. The CLEAR function of the CD40160BMS and CD40161BMS is asychronous and a low level at the CLEAR input sets all four outp.

CD40162BMS Features

* High-Voltage Types (20V Rating)

* CD40160BMS Decade with Asynchronous Clear

* CD40161BMS Binary with Asynchronous Clear

* CD40162BMS Decade with Synchronous Clear

* CD40163BMS Binary with Synchronous Clear

* Internal Look-Ahead for Fast Counting
