CD40163BMS CMOS Synchronous Programmable 4-Bit Counters

Intersil Corporation

Description

CD40160BMS, CD40161BMS, CD40162BMS, CD40163BMS December 1992 File Number 3358 CMOS Synchronous Programmable 4-Bit Counters CD40160BMS, CD40161BMS, CD.
of ‘B’ Series CMOS Devices” Applications. Programmable Binary and Decade Counting. Counter Control/Timers. Frequency Divid.

📥 Download Datasheet

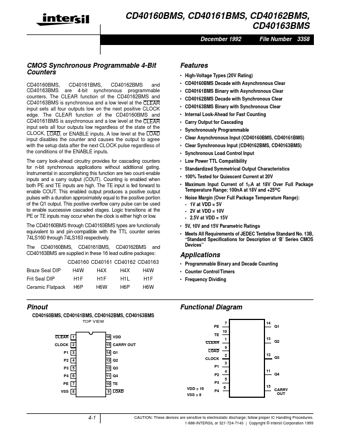

CD40163BMS Datasheet Preview — Preview of CD40163BMS PDF

Datasheet Specifications

Part number: CD40163BMS
Manufacturer: Intersil Corporation
File Size: 156.17 KB
Datasheet: CD40163BMS_IntersilCorporation.pdf
Description: CMOS Synchronous Programmable 4-Bit Counters

Features

* High-Voltage Types (20V Rating)
* CD40160BMS Decade with Asynchronous Clear
* CD40161BMS Binary with Asynchronous Clear
* CD40162BMS Decade with Synchronous Clear
* CD40163BMS Binary with Synchronous Clear
* Internal Look-Ahead for Fast Counting

Applications

* without additional gating. Instrumental in accomplishing this function are two count-enable inputs and a carry output (COUT). Counting is enabled when both PE and TE inputs are high. The TE input is fed forward to enable COUT. This enabled output produces a positive output pulses with a duration app
