CD4511BMS - CMOS BCD-to-7-Segment Latch Decoder Drivers

Datasheet Summary

Description

CD4511BMS is a BCD-to-7-Segment latch decoder drivers constructed with CMOS logic and n-p-n bipolar transistor output devices on a single monolithic structure.

Features

  • High Voltage Type (20V Rating).
  • High Output Sourcing Capability up to 25mA.
  • Input Latches for BCD Code Storage.
  • Lamp Test and Blanking Capability.
  • 7 Segment Outputs Blanked for BCD Input Codes > 1001.
  • 100% Tested for Quiescent Current at 20V.
  • 5V, 10V and 15V Parametric Ratings.
  • Maximum Input Current of 1µA at 18V Over Full Package Temperature Range; 100nA at 18V and +25oC B C LT BL 1 2 3 4 16 VDD 15 f 14 g 13 a 12 b 11 c.

📥 Download Datasheet

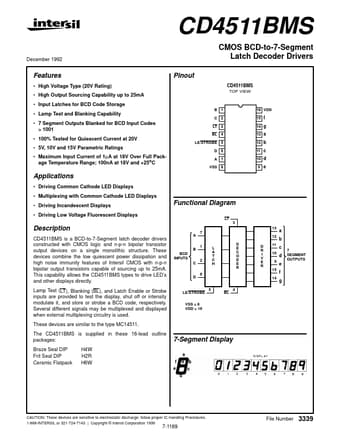

Datasheet preview – CD4511BMS

Datasheet Details

Part number CD4511BMS
Manufacturer Intersil Corporation
File Size 134.09 KB
Description CMOS BCD-to-7-Segment Latch Decoder Drivers
Datasheet download datasheet CD4511BMS Datasheet
Additional preview pages of the CD4511BMS datasheet.

📁 Similar Datasheet

  • CD4511BM - BCD-to-7 Segment Latch/Decoder/Driver (National Semiconductor)
  • CD4511B - CMOS BCD-to-7-Segment Latch Decoder Drivers (RCA)
  • CD4511B - CMOS BCD-to-7-Segment Latch Decoder Drivers (Texas Instruments)
  • CD4511BC - BCD-to-7 Segment Latch/Decoder/Driver (National Semiconductor)
  • CD4510B - CMOS PRESETTABLE UP/DOWN COUNTERS (ETCTI)
  • CD4510B - CMOS PRESETTABLE UP/DOWN COUNTERS (RCA)
  • CD4510BC - BCD-to-7 Segment Latch/Decoder/Driver (National Semiconductor)
  • CD4510BM - BCD-to-7 Segment Latch/Decoder/Driver (National Semiconductor)
  • CD4512 - 8-Channel Buffered Data Selector (National Semiconductor)
  • CD4512B - CMOS 8-CHANNEL DATA SELECTOR (RCA)
Other Datasheets by Intersil Corporation
  • CD4510BMS - CMOS Presettable Up/Down Counters
  • CD4512BMS - CMOS Dual 4-Bit Latch
  • CD4514BMS - CMOS 4-Bit Latch/4-to-16 Line Decoders
  • CD4515BMS - CMOS 4-Bit Latch/4-to-16 Line Decoders
  • CD4516BMS - CMOS Presettable Up/Down Counters
  • CD4517BMS - CMOS Dual 64-Stage Static Shift Register
  • CD4518BMS - CMOS Dual Up Counters
  • CD4502BMS - CMOS Strobed Hex Inverter/Buffer

Full PDF Text Transcription

Click to expand full text
CD4511BMS December 1992 CMOS BCD-to-7-Segment Latch Decoder Drivers Pinout CD4511BMS TOP VIEW Features • High Voltage Type (20V Rating) • High Output Sourcing Capability up to 25mA • Input Latches for BCD Code Storage • Lamp Test and Blanking Capability • 7 Segment Outputs Blanked for BCD Input Codes > 1001 • 100% Tested for Quiescent Current at 20V • 5V, 10V and 15V Parametric Ratings • Maximum Input Current of 1µA at 18V Over Full Package Temperature Range; 100nA at 18V and +25oC B C LT BL 1 2 3 4 16 VDD 15 f 14 g 13 a 12 b 11 c 10 d 9 e LE/STROBE 5 D A VSS 6 7 8 Applications • Driving Common Cathode LED Displays • Multiplexing with Common Cathode LED Displays • Driving Incandescent Displays • Driving Low Voltage Fluorescent Displays LT 3 13 A 7 12 1 L A T C H D E C O D E R D R I
