DG308A Quad Monolithic SPST / CMOS Analog Switch

only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliab.

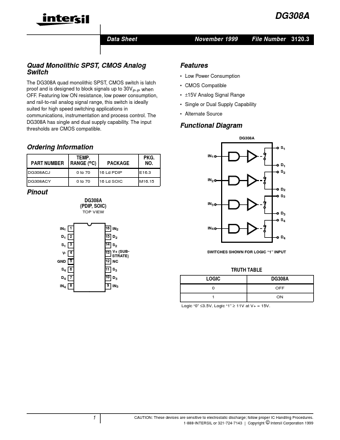

DG308A Data Sheet November 1999 File Number 3120.3 Quad Monolithic SPST, CMOS Analog Switch The DG308A quad monolithic SPST, CMOS switch is latch proof and is designed to block signals up to 30VP-P when OFF. Featuring low ON resistance, low power consumption, and rail-to-rail analog signal range, this switch is ideally suited for high speed switching applications in communications, instrumentation and process control. The DG308A has single and dual supply capability. The input thresholds are CM.

DG308A Features

* Low Power Consumption

* CMOS Compatible

* ±15V Analog Signal Range

* Single or Dual Supply Capability

* Alternate Source Functional Diagram DG308A Ordering Information PART NUMBER DG308ACJ DG308ACY TEMP. RANGE (oC) 0 to 70 0 to 70 PACKAGE 16 Ld PDIP 16 Ld
