DG526, Analog CMOS Latchable Multiplexers

Semiconductor April 1999 T UCT DUC ROD TE PRO 747 P E T 7 TITU OLE 442OBS LE SUBS s 1-800- m s.co SIB tion POS Applica p@harri A R FO Central centap.
The DG526, DG527, DG528, and DG529 are CMOS Monolithic 16-Channel/Dual 4-Channel Analog Multiplexers.

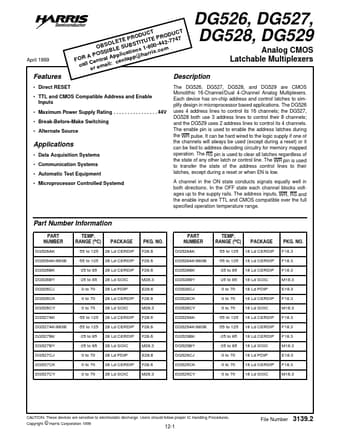

datasheet Preview Page 1 from Datasheet4u.com

DG526_IntersilCorporation.pdf

DG526 Datasheet Preview — Preview of DG526 PDF

Datasheet Details

Part number:

DG526

Manufacturer:

Intersil Corporation

File Size:

308.73 KB

Description:

Analog CMOS Latchable Multiplexers

Features

* Direct RESET
* TTL and CMOS Compatible Address and Enable Inputs
* Maximum Power Supply Rating
* . 44V
* Break-Before-Make Switching

Applications

* The DG526 uses 4 address lines to control its 16 channels; the DG527, DG528 both use 3 address lines to control their 8 channels; and the DG529 uses 2 address lines to control its 4 channels. The enable pin is used to enable the address latches during the WR pulse. It can be hard wired to the logic
