DG520-1-3 Green Dot Lasermodule

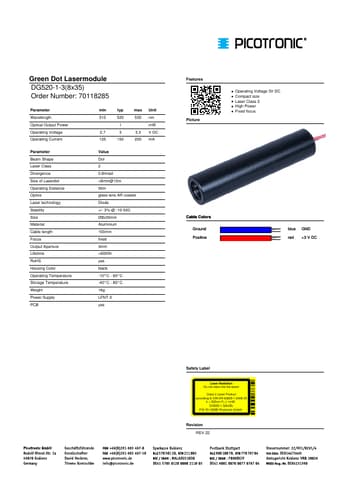

Green Dot Lasermodule DG520-1-3(8x35) Order Number: 70118285 Parameter Wavelength Optical Output Power Operating Voltage Operating Current Parameter Beam Shape Laser Class Divergence Size of Laserdot Operating Distance Optics Laser technology Stability Size Material Cable length Focus Output Aperture Lifetime RoHS Housing Color Operating Temperature Storage Temperature Weight Power Supply PCB 2.7 125 Value Dot 2 0.8mrad <8mm@10m 50m glass lens AR coated Diode +/- 3% @ -10-50C Ø8x35mm Aluminium 1.

DG520-1-3 Features

* Operating Voltage 3V DC Compact size Laser Class 2 High Power Fixed focus Picture Cable Colors Ground Positive blue red GND +3 V DC Safety Label Laser Radiation Do not stare into the beam Class 2 Laser Product according to DIN EN 60825-1:2008-05 λ = 520nm P₀ ≤ 1mW DG520-1-3(8x35) P/N 70118285 Pic

DG520-1-3-Picotronic.pdf

DG520-1-3 Datasheet Preview — Preview of DG520-1-3 PDF

Datasheet Details

Part number:

DG520-1-3

Manufacturer:

Picotronic

File Size:

239.33 KB

Description:

Green dot lasermodule.
