DG527

Analog CMOS Latchable Multiplexers

DG527 Features

* Direct RESET

* TTL and CMOS Compatible Address and Enable Inputs

* Maximum Power Supply Rating . . . . . . . . . . . . . . . . 44V

* Break-Before-Make Switching

* Alternate Source Description The DG526, DG527, DG528, and DG529 are CMOS Monolithic 16-Channel

DG527 General Description

The DG526, DG527, DG528, and DG529 are CMOS Monolithic 16-Channel/Dual 4-Channel Analog Multiplexers. Each device has on-chip address and control latches to simplify design in microprocessor based applications. The DG526 uses 4 address lines to control its 16 channels; the DG527, DG528 both use 3 ad.

DG527 Datasheet (308.73 KB)

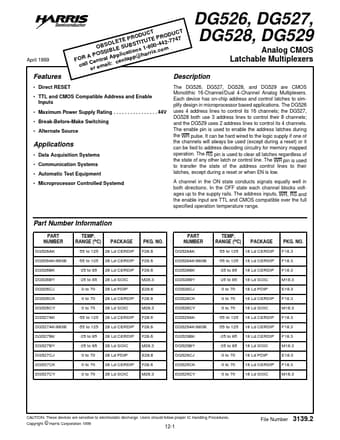

Preview of DG527 PDF

Datasheet Details

Part number:

DG527

Manufacturer:

Intersil Corporation

File Size:

308.73 KB

Description:

Analog cmos latchable multiplexers.
