EL5000A High Voltage TFT-LCD Logic Driver

CONDITION MIN MAX (Note 1) TYP (Note 1) UNIT IVDD VDD Supply Current All inputs low CPV = 3.1V, other inputs low 1.1 mA 0.7 1.5 2.5 mA IVON VON Supply Current All inputs low CPV = 3.1V, other inputs low 0.25 0.2 0.45 0.9 mA mA IVOFF VOFF Supply Current All inputs low CPV = 3.1V, other .

® Data Sheet February 20, 2008 EL5000A FN6167.2 High Voltage TFT-LCD Logic Driver The EL5000A is high voltage TFT-LCD logic driver with +40V and -30V output swing capability. Manufactured using the Intersil proprietary monolithic high voltage bipolar process, it is capable of delivering 100mA output peak current into 5nF of capacitive load. To simplify external circuitry, the EL5000A integrates additional logic circuits. The EL5000A can operate on 3.3V logic supply and high voltage -30V to +4.

EL5000A Features

* 3.3V logic supply

* 40V VON output high level

* -30V VOFF output low level

* 166kHz input logic frequency

* 100mA output peak current

* 10mA output continuous current

* TTL-compatible logic input

* Pb-free (RoHS compliant) Applicatio

EL5000A_IntersilCorporation.pdf

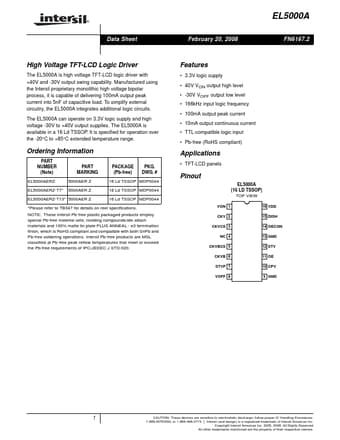

EL5000A Datasheet Preview — Preview of EL5000A PDF

Datasheet Details

Part number:

EL5000A

Manufacturer:

Intersil Corporation

File Size:

336.23 KB

Description:

High voltage tft-lcd logic driver.
