EL5001 Datasheet, Driver, Intersil Corporation

EL5001 Features

  • Driver
  • SIx inverting/non-inverting channels
  • 3.3V input logic
  • 18V output
  • 250µA typical supply current
  • Drives up to 500pF
  • TR/TF = 35ns

PDF File Details

Part number:

EL5001

Manufacturer:

Intersil Corporation

File Size:

395.53kb

Download:

📄 Datasheet

Description:

6-channel clock driver. EN = 3V, INX = 0V EN = 3V, INX = 3V 750 250 3 -13 5 0 1200 500 µA µA µA IS_DIS VLR VHR VH-VL INPUT VIH IIH VIL IIL CIN RIN OUTPU

Datasheet Preview: EL5001 📥 Download PDF (395.53kb)

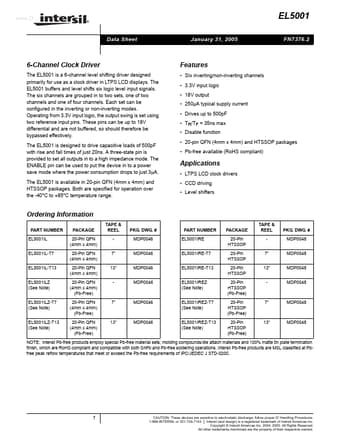

Page 2 of EL5001 Page 3 of EL5001

EL5001 Application

  • Applications
  • LTPS LCD clock drivers
  • CCD driving
  • Level shifters Ordering Information PART NUMBER EL5001IL EL5001IL-T7
