EL5210 - 30MHz Rail-to-Rail Input-Output Op Amps

® Data Sheet EL5210, EL5410 July 5, 2007 FN7185.3 30MHz Rail-to-Rail Input-Output Op Amps The EL5210 and EL5410 are low power, high voltage rail-torail input-output amplifiers. The EL5210 contains two amplifiers in one package and the EL5410 contains four amplifiers. Operating on supplies ranging from 5V to 15V, while consuming only 2.5mA per amplifier, the EL5410 and EL5210 have a bandwidth of 30MHz (-3dB). They also provide common mode input ability beyond the supply rails, as well as rail.

EL5210 Features

* make these amplifiers ideal for high speed filtering and signal conditioning application. Other applications include battery power, portable devices, and anywhere low power consumption is important. The EL5410 is available in a space-saving 14 Ld TSSOP package, as well as the industry-standard 14 Ld

EL5210_IntersilCorporation.pdf

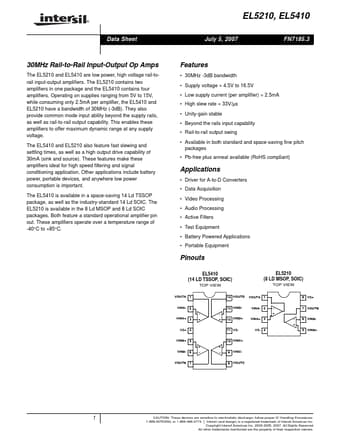

EL5210 Datasheet Preview — Preview of EL5210 PDF

Datasheet Details

Part number:

EL5210

Manufacturer:

Intersil Corporation

File Size:

303.12 KB

Description:

30mhz rail-to-rail input-output op amps.
