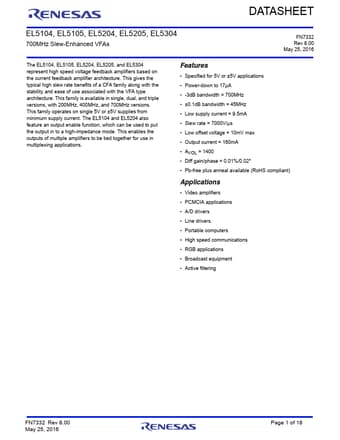

DATASHEET EL5104, EL5105, EL5204, EL5205, EL5304 700MHz Slew-Enhanced VFAs FN7332 Rev 8.00 May 25, 2016 The EL5104, EL5105, EL5204, EL5205, and EL5304 represent high speed voltage feedback amplifiers based on the current feedback amplifier architecture. This gives the typical high slew rate benefits of a CFA family along with the stability and ease of use associated with the VFA type architecture. This family is available in single, dual, and triple versions, with 200MHz, 400MHz, and 700MHz v.

EL5205 Features

* Specified for 5V or ±5V applications

* Power-down to 17µA

* -3dB bandwidth = 700MHz

* ±0.1dB bandwidth = 45MHz

* Low supply current = 9.5mA

* Slew rate

EL5205 Datasheet (1.70 MB)
