EL5252, EL5152 Ultra-Accurate Amplifier

EL5252 Description

® Data Sheet EL5152, EL5153, EL5252, EL5455 March 2, 2009 FN7385.6 270MHz Ultra-Accurate Amplifiers The EL5152, EL5153, EL5252, and EL5455 are 270.

EL5252 Features

* 270MHz -3dB bandwidth
* 180V/µs slew rate
* ±1mV maximum VOS
* Very high open loop gains 50kV/V
* Low supply current = 3mA
* 105mA output current
* Single supplies from 5V to 12V
* Dual supplies from ±2.5V to ±5V
* Fast disabl

EL5252 Applications

* ranging from precision measurement instrumentation to high-speed video and monitor applications demanding higher linearity at higher frequency. Capable of operating with as little as 3.0mA of current from a single supply ranging from 5V to 12V dual supplies ranging from ±2.5V to ±5.0V these amplifie

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EL5252, EL5152. Please refer to the document for exact specifications by model.

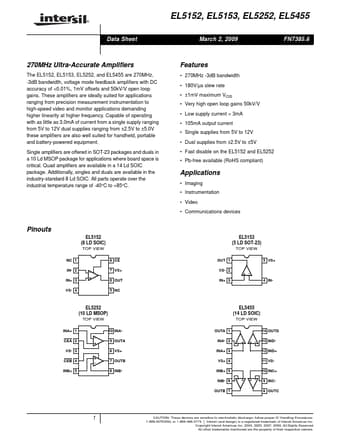

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EL5252, EL5152
Manufacturer
Intersil Corporation
File Size
375.26 KB
Datasheet
EL5152_IntersilCorporation.pdf
Description
Ultra-Accurate Amplifier
Note
This datasheet PDF includes multiple part numbers: EL5252, EL5152.
Please refer to the document for exact specifications by model.
