HA-5102 Datasheet - Intersil Corporation

HA-5102 Dual and Quad/ 8MHz and 60MHz/ Low Noise Operational Amplifiers

HA-5102, HA-5104, HA-5114 Data Sheet April 1999 File Number 2925.4 Dual and Quad, 8MHz and 60MHz, Low Noise Operational Amplifiers Low noise and high performance are key words describing HA-5102, HA-5104 and HA-5114. These general purpose amplifiers offer an array of dynamic specifications ranging from a 3V/µs slew rate and 8MHz bandwidth (5102/04) to 20V/µs slew rate and 60MHz gain-bandwidth-product (HA-5114). Complementing these outstanding parameters is a very low noise specification of 4.3nV/√H.

HA-5102 Features

* make this series of amplifiers ideally suited for designs ranging from audio amplifiers and active filters to the most demanding signal conditioning and instrumentation circuits. These operational amplifiers are available in dual or quad form with industry standard pinouts allowing for immediate interch

HA-5102 Datasheet (498.71 KB)

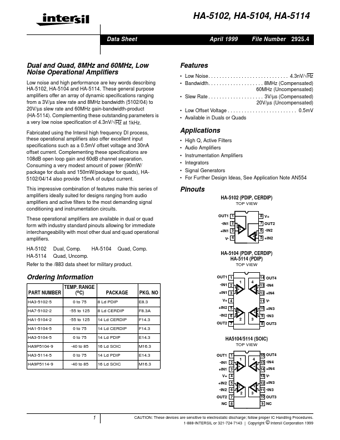

Preview of HA-5102 PDF
HA-5102 Datasheet Preview Page 2 HA-5102 Datasheet Preview Page 3

Datasheet Details

Part number:

HA-5102

Manufacturer:

Intersil Corporation

File Size:

498.71 KB

Description:

Dual and quad/ 8mhz and 60mhz/ low noise operational amplifiers.
