HA-5114883 - Quad/ Low Noise/ High Performance Uncompensated Operational Amplifier

HA-5114883 Description

HA-5114/883 July 1994 Quad, Low Noise, High Performance Uncompensated Operational Amplifier .
Low noise and high performance are key words describing the quad, uncompensated HA-5114/883.

HA-5114883 Features

* make this amplifier ideally suited for designs ranging from audio amplifiers and active filters to the most demanding signal conditioning and instrumentation circuits. Features
* This Circuit is Processed in Accordance to MIL-STD883 and is Fully Conformant Under the Provisions of Paragraph 1.2

HA-5114883 Applications

* High Quality Audio Preamplifiers
* High Q Active Filters
* Low Noise Function Generators
* Low Distortion Oscillators
* Low Noise Comparators Ordering Information PART NUMBER HA1-5114/883 HA4-5114/883 TEMPERATURE RANGE -55oC -55oC to to +125oC +125oC PACKAGE

📥 Download Datasheet

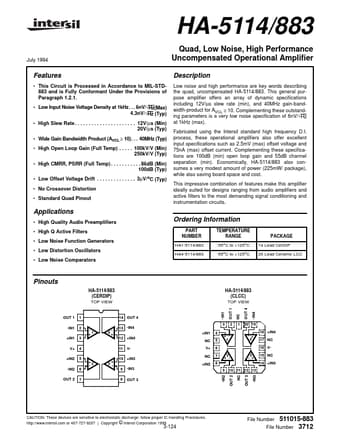

Preview of HA-5114883 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HA-5114883
Manufacturer
Intersil Corporation
File Size
32.91 KB
Datasheet
HA-5114883_IntersilCorporation.pdf
Description
Quad/ Low Noise/ High Performance Uncompensated Operational Amplifier
