HA-5320 1 Microsecond Precision Sample and Hold Amplifier

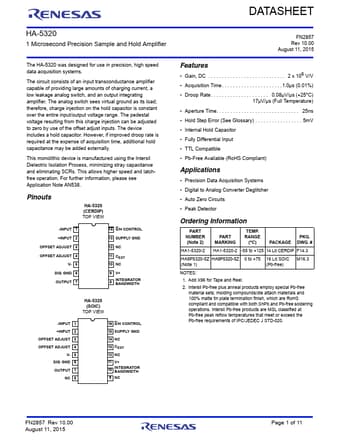

DATASHEET HA-5320 1 Microsecond Precision Sample and Hold Amplifier The HA-5320 was designed for use in precision, high speed data acquisition systems. The circuit consists of an input transconductance amplifier capable of providing large amounts of charging current, a low leakage analog switch, and an output integrating amplifier. The analog switch sees virtual ground as its load; therefore, charge injection on the hold capacitor is constant over the entire input/output voltage range. The ped.

HA-5320-Renesas.pdf

Preview of HA-5320 PDF
HA-5320 Datasheet Preview Page 2 HA-5320 Datasheet Preview Page 3

Datasheet Details

Part number:

HA-5320

Manufacturer:

Renesas ↗

File Size:

364.01 KB

Description:

1 microsecond precision sample and hold amplifier.
