HA-2542

High Output Current Operational Amplifier

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor LeaderTech 82NH-CBSA-2.5X4.25X0.8 EMI Gaskets, Sheets, Absorbers & Shielding 2.5X4.25 TH RF Shield 2-Piece Mouser Electronics 0 1 units
$26.31

HA-2542 Datasheet (1.16 MB)

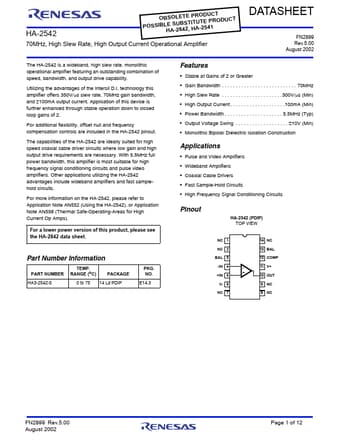

Preview of HA-2542 PDF Datasheet

Datasheet Details

Part number:

HA-2542

Manufacturer:

Renesas ↗

File Size:

1.16 MB

Description:

High output current operational amplifier

HA-2542 Features

* Stable at Gains of 2 or Greater

* Gain Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . 70MHz

* High Slew Rate . . . . . . . . . . . . . . . . . . . . . .300V/s (Min)

* High Output Current . . . . . . . . . . . . . . . . . . . .100mA (Min)
