HA-2540 - 400MHz/ Fast Settling Operational Amplifier

Datasheet Summary

Features

  • Very High Slew Rate.
  • . . 400V/µs.
  • Fast Settling Time.
  • . . 140ns.
  • Wide Gain Bandwidth (AV ≥ 10).
  • . . . . 400MHz.
  • Power Bandwidth.
  • . . 6MHz.
  • Low Offset Voltage.
  • . . 8mV.
  • Input Voltage Noise.
  • . . . 6nV/√Hz.
  • Output Voltage.

📥 Download Datasheet

Datasheet preview – HA-2540

Datasheet Details

Part number HA-2540
Manufacturer Intersil Corporation
File Size 518.44 KB
Description 400MHz/ Fast Settling Operational Amplifier
Datasheet download datasheet HA-2540 Datasheet
Additional preview pages of the HA-2540 datasheet.

📁 Similar Datasheet

  • HA-2540 - Fast Settling Operational Amplifier (Renesas)
  • HA-2541 - Operational Amplifier (Intersil)
  • HA-2542 - High Output Current Operational Amplifier (Renesas)
  • HA-2544 - Video Operational Amplifier (Intersil)
  • HA-2546 - Two Quadrant Analog Multiplier (Intersil)
  • HA-2548 - Precision Operational Amplifier (Intersil)
  • HA-2548-883 - Wideband Operational Amplifier (Intersil)
  • HA-2500 - High Input Impedance / Operational Amplifiers (Harris)
  • HA-2500-883 - Precision High Slew Rate Operational Amplifier (Intersil)
  • HA-2502 - High Input Impedance / Operational Amplifiers (Harris)
Other Datasheets by Intersil Corporation
  • HA-2542 - 70MHz/ High Slew Rate/ High Output Current Operational Amplifier
  • HA-2515 - Operational Amplifier
  • HA-2404 - 40MHz/ PRAM Four Channel Programmable Amplifiers
  • HA-2405 - 40MHz/ PRAM Four Channel Programmable Amplifiers
  • HA-2406 - 30MHz/ Digitally Selectable Four Channel Operational Amplifier
  • HA-2444 - 50MHz/ Selectable/ Four Channel Video Operational Amplifier
  • HA-2605 - 12MHz/ High Input Impedance Operational Amplifiers
  • HA-2626 - 100MHz/ High Input Impedance/ Very Wideband/ Uncompensated Operational Amplifiers

Full PDF Text Transcription

Click to expand full text

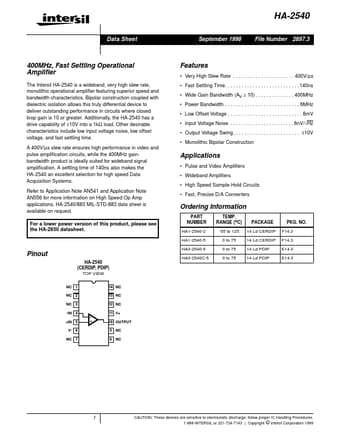

HA-2540 Data Sheet September 1998 File Number 2897.3 400MHz, Fast Settling Operational Amplifier The Intersil HA-2540 is a wideband, very high slew rate, monolithic operational amplifier featuring superior speed and bandwidth characteristics. Bipolar construction coupled with dielectric isolation allows this truly differential device to deliver outstanding performance in circuits where closed loop gain is 10 or greater. Additionally, the HA-2540 has a drive capability of ±10V into a 1kΩ load. Other desirable characteristics include low input voltage noise, low offset voltage, and fast settling time. A 400V/µs slew rate ensures high performance in video and pulse amplification circuits, while the 400MHz gainbandwidth product is ideally suited for wideband signal amplification.
