HA-2542 - 70MHz/ High Slew Rate/ High Output Current Operational Amplifier

Datasheet Summary

Features

  • Stable at Gains of 2 or Greater.
  • Gain Bandwidth.
  • . . 70MHz.
  • High Slew Rate.
  • . . 300V/µs (Min).
  • High Output Current.
  • . . . . 100mA (Min).
  • Power Bandwidth.
  • . 5.5MHz (Typ).
  • Output Voltage Swing.
  • . . . . ±10V (Min).
  • Monolithic Bipolar Dielectric Isolation Construction Appli.

📥 Download Datasheet

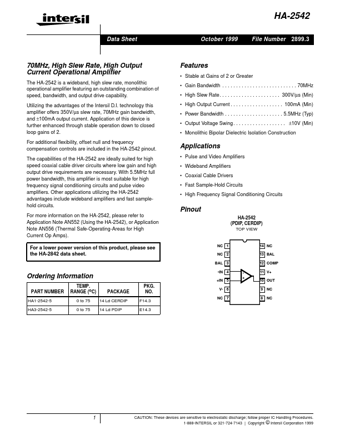

Datasheet preview – HA-2542
