HA-2515 - Operational Amplifier

Datasheet Summary

Description

only.

Intersil Corporation reserves the right to make changes in circuit design, software and/or specifications at any time without notice.

Accordingly, the reader is cautioned to verify that data sheets are current before placing orders.

Features

  • Slew Rate.
  • . . 60V/µs.
  • Fast Settling.
  • . 250ns.
  • Full Power Bandwidth.
  • . . . 1MHz.
  • Gain Bandwidth.
  • . . 12MHz.
  • High Input Impedance.
  • . . 100MΩ.
  • Low Offset Current.
  • . .10nA.
  • Int.

📥 Download Datasheet

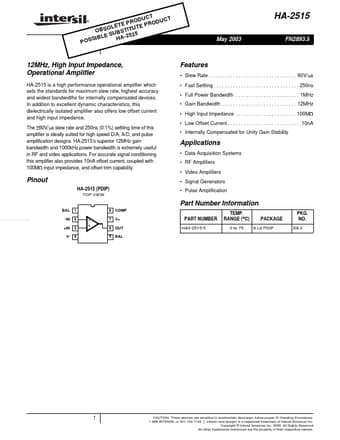

Datasheet preview – HA-2515

Datasheet Details

Part number HA-2515
Manufacturer Intersil Corporation
File Size 231.64 KB
Description Operational Amplifier
Datasheet download datasheet HA-2515 Datasheet
Additional preview pages of the HA-2515 datasheet.

📁 Similar Datasheet

  • HA-2510-883 - High Slew Rate Operational Amplifier (Intersil)
  • HA-2500 - High Input Impedance / Operational Amplifiers (Harris)
  • HA-2500-883 - Precision High Slew Rate Operational Amplifier (Intersil)
  • HA-2502 - High Input Impedance / Operational Amplifiers (Harris)
  • HA-2505 - Operational Amplifier (Intersil)
  • HA-2505 - High Input Impedance / Operational Amplifiers (Harris)
  • HA-2520 - Operational Amplifiers (Intersil)
  • HA-2522 - Operational Amplifiers (Intersil)
  • HA-2525 - Operational Amplifiers (Intersil)
  • HA-2539 - Very High Slew Rate Operational Amplifier (Intersil)
Other Datasheets by Intersil Corporation
  • HA-2540 - 400MHz/ Fast Settling Operational Amplifier
  • HA-2542 - 70MHz/ High Slew Rate/ High Output Current Operational Amplifier
  • HA-2404 - 40MHz/ PRAM Four Channel Programmable Amplifiers
  • HA-2405 - 40MHz/ PRAM Four Channel Programmable Amplifiers
  • HA-2406 - 30MHz/ Digitally Selectable Four Channel Operational Amplifier
  • HA-2444 - 50MHz/ Selectable/ Four Channel Video Operational Amplifier
  • HA-2605 - 12MHz/ High Input Impedance Operational Amplifiers
  • HA-2626 - 100MHz/ High Input Impedance/ Very Wideband/ Uncompensated Operational Amplifiers

Full PDF Text Transcription

Click to expand full text
T U CT ROD RO DUC P E P T E E OL UT O B S U B S TI T 5 S 2 5 E -2 HA SIBL Data Sheet PO S ® HA-2515 May 2003 FN2893.5 12MHz, High Input Impedance, Operational Amplifier HA-2515 is a high performance operational amplifier which sets the standards for maximum slew rate, highest accuracy and widest bandwidths for internally compensated devices. In addition to excellent dynamic characteristics, this dielectrically isolated amplifier also offers low offset current and high input impedance. The ±60V/µs slew rate and 250ns (0.1%) settling time of this amplifier is ideally suited for high speed D/A, A/D, and pulse amplification designs. HA-2515’s superior 12MHz gain bandwidth and 1000kHz power bandwidth is extremely useful in RF and video applications.
