HA-2520 - Operational Amplifiers

HA-2520 Description

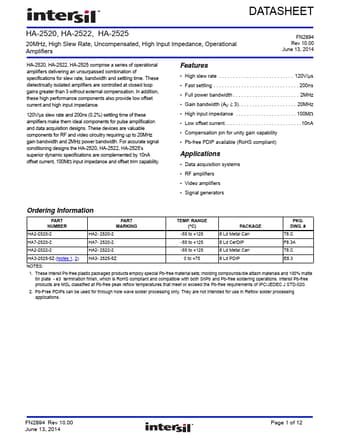

DATASHEET HA-2520, HA-2522, HA-2525 20MHz, High Slew Rate, Uncompensated, High Input Impedance, Operational Amplifiers FN2894 Rev 10.00 June 13, 201.

HA-2520 Features

* High slew rate
* . . 120V/µs
* Fast settling
* . 200ns
* Full power bandwidth
* . . . . 2MHz
* Gain bandwidth (AV  3)

HA-2520 Applications

* Data acquisition systems
* RF amplifiers
* Video amplifiers
* Signal generators Ordering Information PART NUMBER PART MARKING TEMP. RANGE (°C) PACKAGE PKG. DWG. # HA2-2520-2 HA2- 2520-2 -55 to +125 8 Ld Metal Can T8.C HA7-2520-2 HA7- 2520-2 -55 to +125
