HA-2500 - High Input Impedance / Operational Amplifiers

Datasheet Summary

Description

HA-2500, HA-2502, HA-2505 comprises a series of operational amplifiers whose designs are optimized to deliver excellent slew rate, bandwidth, and settling time specifications.

Features

  • of this internally compensated device are complemented with low offset voltage and offset current. These dielectrically isolated amplifiers are ideally suited for.

📥 Download Datasheet

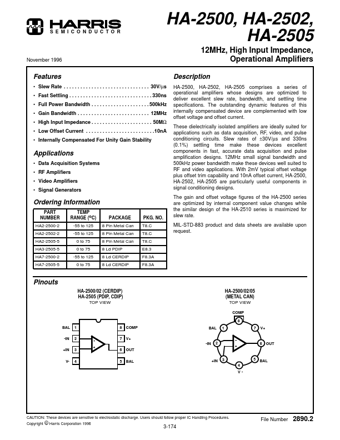

Datasheet preview – HA-2500

Datasheet Details

Part number HA-2500
Manufacturer Harris
File Size 196.98 KB
Description High Input Impedance / Operational Amplifiers
Datasheet download datasheet HA-2500 Datasheet
Additional preview pages of the HA-2500 datasheet.

📁 Similar Datasheet

  • HA-2500-883 - Precision High Slew Rate Operational Amplifier (Intersil)
  • HA-2505 - Operational Amplifier (Intersil)
  • HA-2510-883 - High Slew Rate Operational Amplifier (Intersil)
  • HA-2515 - Operational Amplifier (Intersil Corporation)
  • HA-2520 - Operational Amplifiers (Intersil)
  • HA-2522 - Operational Amplifiers (Intersil)
  • HA-2525 - Operational Amplifiers (Intersil)
  • HA-2539 - Very High Slew Rate Operational Amplifier (Intersil)
  • HA-2540 - 400MHz/ Fast Settling Operational Amplifier (Intersil Corporation)
  • HA-2540 - Fast Settling Operational Amplifier (Renesas)
Other Datasheets by Harris
  • HA-2502 - High Input Impedance / Operational Amplifiers
  • HA-2505 - High Input Impedance / Operational Amplifiers
  • HA-5102 - Low Noise Operational Amplifiers
  • HA-5104 - Low Noise Operational Amplifiers
  • HA-5112 - Low Noise Operational Amplifiers
  • HA-5114 - Low Noise Operational Amplifiers
  • HA-909 - Operation Amplifier
  • HA-911 - Operation Amplifier

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com S E M I C O N D U C T O R HA-2500, HA-2502, HA-2505 12MHz, High Input Impedance, Operational Amplifiers Description HA-2500, HA-2502, HA-2505 comprises a series of operational amplifiers whose designs are optimized to deliver excellent slew rate, bandwidth, and settling time specifications. The outstanding dynamic features of this internally compensated device are complemented with low offset voltage and offset current. These dielectrically isolated amplifiers are ideally suited for applications such as data acquisition, RF, video, and pulse conditioning circuits. Slew rates of ±30V/µs and 330ns (0.1%) settling time make these devices excellent components in fast, accurate data acquisition and pulse amplification designs.
