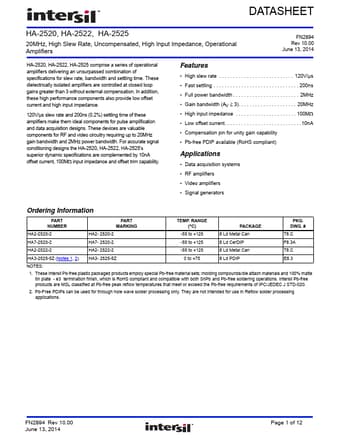

DATASHEET HA-2520, HA-2522, HA-2525 20MHz, High Slew Rate, Uncompensated, High Input Impedance, Operational Amplifiers FN2894 Rev 10.00 June 13, 201.

datasheet Preview Page 1 from Datasheet4u.com

HA-2520-Intersil.pdf

HA-2522 Datasheet Preview — This datasheet PDF includes multiple part numbers: HA-2522, HA-2520. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HA-2522, HA-2520

Manufacturer:

Intersil

File Size:

456.52 KB

Description:

Operational Amplifiers

Note:

This datasheet PDF includes multiple part numbers: HA-2522, HA-2520.
Please refer to the document for exact specifications by model.

Features

* High slew rate
* . . 120V/µs
* Fast settling
* . 200ns
* Full power bandwidth
* . . . . 2MHz
* Gain bandwidth (AV  3)

Applications

* Data acquisition systems
* RF amplifiers
* Video amplifiers
* Signal generators Ordering Information PART NUMBER PART MARKING TEMP. RANGE (°C) PACKAGE PKG. DWG. # HA2-2520-2 HA2- 2520-2 -55 to +125 8 Ld Metal Can T8.C HA7-2520-2 HA7- 2520-2 -55 to +125
