HA-2556 - Voltage Output Analog Multiplier

HA-2556 Description

DATASHEET HA-2556 57MHz, Wideband, Four Quadrant, Voltage Output Analog Multiplier FN2477 Rev 7.00 April 25, 2013 The HA-2556 is a monolithic, high.

HA-2556 Features

* High Speed Voltage Output
* . . 450V/µs
* Low Multiplication Error
* . . . 1.5%
* Input Bias Currents
* . .8µA
* 5MHz Feedthrough

HA-2556 Applications

* is demonstrated further by the Y-Channel 0.1dB gain flatness to 5.0MHz, 1.5% multiplication error, -50dB feedthrough and differential inputs with 8µA bias current. The HA-2556 also has low differential gain (0.1%) and phase (0.1°) errors. The HA-2556 is well suited for AGC circuits as well as mixer

📥 Download Datasheet

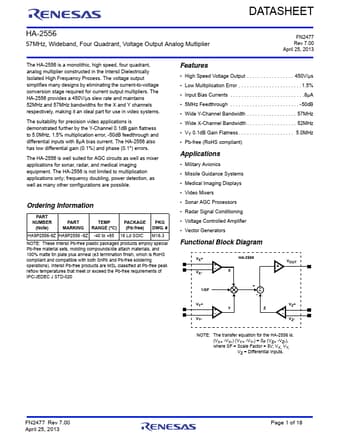

Preview of HA-2556 PDF
