HA-2620 - Uncompensated Operational Amplifiers

Product Overview

Renesas

Part number	HA-2620
Manufacturer	Renesas
File Size	268.56 KB
Description	Uncompensated Operational Amplifiers
Datasheet	HA-2620 Datasheet

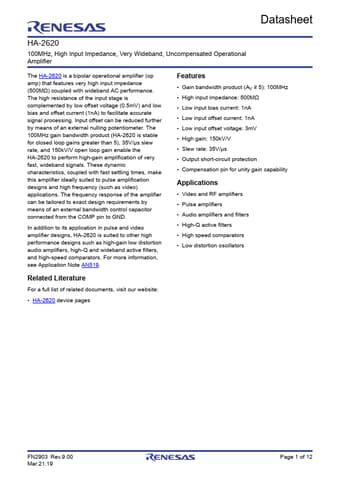

Additional preview pages of the HA-2620 datasheet.

very high input impedance (500MΩ) coupled with wideband AC performance. The high resistance of the input stage is complemented by low offset voltage (0.5mV) and low bias and offset current (1nA) to facilitate accurate signal processing. Input offset can be reduced further by means of an external nulling potentiometer. The 100MHz gain bandwidth product (HA-2620 is stable for closed loop gains greater than 5), 35V/µs slew rate, and 150kV/V open loop gain enable the HA-2620 to perform high-gain amp.
