HA-2400-883 - PRAM Four-Channel Programmable Operational Amplifier

Datasheet Summary

Features

  • for these dielectrically isolated amplifiers include high voltage gain and input impedance coupled with low input offset voltage and offset current. External compensation is not required on this device at closed loop gains greater than 10. Each channel of the HA-2400/883 can be controlled and operated with suitable feedback networks in any of the standard op amp configurations. This specialization makes these amplifiers excellent components for multiplexing, signal selection and mathematical fun.

📥 Download Datasheet

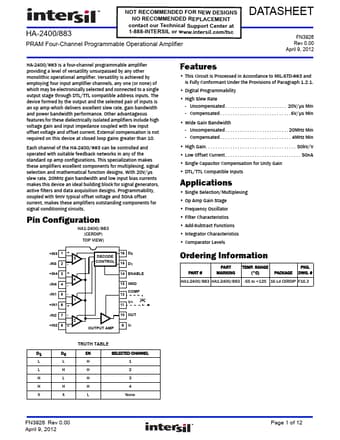

Datasheet preview – HA-2400-883

Datasheet Details

Part number HA-2400-883
Manufacturer Intersil
File Size 770.00 KB
Description PRAM Four-Channel Programmable Operational Amplifier
Datasheet download datasheet HA-2400-883 Datasheet
Additional preview pages of the HA-2400-883 datasheet.

📁 Similar Datasheet

  • HA-2404 - 40MHz/ PRAM Four Channel Programmable Amplifiers (Intersil Corporation)
  • HA-2404 - PRAM Four Channel Programmable Amplifiers (Renesas)
  • HA-2405 - 40MHz/ PRAM Four Channel Programmable Amplifiers (Intersil Corporation)
  • HA-2406 - 30MHz/ Digitally Selectable Four Channel Operational Amplifier (Intersil Corporation)
  • HA-2406 - Digitally Selectable Four Channel Operational Amplifier (Renesas)
  • HA-2444 - 50MHz/ Selectable/ Four Channel Video Operational Amplifier (Intersil Corporation)
  • HA-2500 - High Input Impedance / Operational Amplifiers (Harris)
  • HA-2502 - High Input Impedance / Operational Amplifiers (Harris)
  • HA-2505 - High Input Impedance / Operational Amplifiers (Harris)
  • HA-2515 - Operational Amplifier (Intersil Corporation)
Other Datasheets by Intersil
  • HA-2400 - PRAM Four Channel Operational Amplifier
  • HA-2420 - Sample and Hold Amplifiers
  • HA-2425 - Sample and Hold Amplifiers
  • HA-2500-883 - Precision High Slew Rate Operational Amplifier
  • HA-2505 - Operational Amplifier
  • HA-2510-883 - High Slew Rate Operational Amplifier
  • HA-2520 - Operational Amplifiers
  • HA-2522 - Operational Amplifiers

Full PDF Text Transcription

Click to expand full text
HA-2400/883 NOT RECOMMENDED FOR NEW DESIGNS NO RECOMMENDED REPLACEMENT contact our Technical Support Center at 1-888-INTERSIL or www.intersil.com/tsc PRAM Four-Channel Programmable Operational Amplifier DATASHEET FN3926 Rev 0.00 April 9, 2012 HA-2400/883 is a four-channel programmable amplifier providing a level of versatility unsurpassed by any other monolithic operational amplifier. Versatility is achieved by employing four input amplifier channels, any one (or none) of which may be electronically selected and connected to a single output stage through DTL/TTL compatible address inputs. The device formed by the output and the selected pair of inputs is an op amp which delivers excellent slew rate, gain bandwidth and power bandwidth performance.
