HA-2400 - PRAM Four Channel Operational Amplifier

📥 Download Datasheet

Datasheet preview – HA-2400

Datasheet Details

Part number HA-2400
Manufacturer Intersil
File Size 149.55 KB
Description PRAM Four Channel Operational Amplifier
Datasheet download datasheet HA-2400 Datasheet
Additional preview pages of the HA-2400 datasheet.

📁 Similar Datasheet

  • HA-2404 - 40MHz/ PRAM Four Channel Programmable Amplifiers (Intersil Corporation)
  • HA-2404 - PRAM Four Channel Programmable Amplifiers (Renesas)
  • HA-2405 - 40MHz/ PRAM Four Channel Programmable Amplifiers (Intersil Corporation)
  • HA-2406 - 30MHz/ Digitally Selectable Four Channel Operational Amplifier (Intersil Corporation)
  • HA-2406 - Digitally Selectable Four Channel Operational Amplifier (Renesas)
  • HA-2444 - 50MHz/ Selectable/ Four Channel Video Operational Amplifier (Intersil Corporation)
  • HA-2500 - High Input Impedance / Operational Amplifiers (Harris)
  • HA-2502 - High Input Impedance / Operational Amplifiers (Harris)
  • HA-2505 - High Input Impedance / Operational Amplifiers (Harris)
  • HA-2515 - Operational Amplifier (Intersil Corporation)
Other Datasheets by Intersil
  • HA-2400-883 - PRAM Four-Channel Programmable Operational Amplifier
  • HA-2420 - Sample and Hold Amplifiers
  • HA-2425 - Sample and Hold Amplifiers
  • HA-2500-883 - Precision High Slew Rate Operational Amplifier
  • HA-2505 - Operational Amplifier
  • HA-2510-883 - High Slew Rate Operational Amplifier
  • HA-2520 - Operational Amplifiers
  • HA-2522 - Operational Amplifiers

Full PDF Text Transcription

Click to expand full text

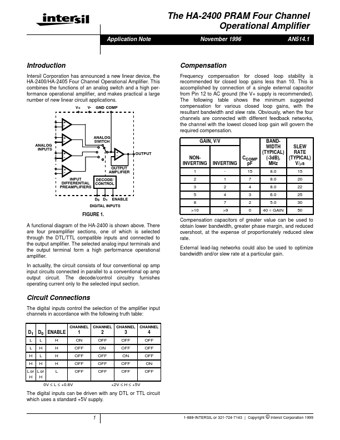

Application Note The HA-2400 PRAM Four Channel Operational Amplifier November 1996 AN514.1 Introduction Intersil Corporation has announced a new linear device, the HA-2400/HA-2405 Four Channel Operational Amplifier. This combines the functions of an analog switch and a high performance operational amplifier, and makes practical a large number of new linear circuit applications. V+ V- GND COMP + - + ANALOG INPUTS + - ANALOG SWITCH + - OUTPUT + OUTPUT - AMPLIFIER INPUT DECODE/ DIFFERENTIAL CONTROL PREAMPLIFIERS D0 D1 ENABLE DIGITAL INPUTS FIGURE 1. A functional diagram of the HA-2400 is shown above. There are four preamplifier sections, one of which is selected through the DTL/TTL compatible inputs and connected to the output amplifier.
