HA-2548 - Precision Operational Amplifier

HA-2548 Description

c1o-n8Nt8ao8c-RtIONoeBTcuSoEr mORTeSLmcEILe®hTnnoEdircePwadRlwRSOwueD.ppiUnlpaCtoecTrertsmCile.ecnnottmer/tastc 150MHz, High Slew Rate, Precision Oper.

HA-2548 Features

* can eliminate the need for composite op amp designs and external calibration circuitry. Optimized for gains ≥5, the HA-2548 has a gain-bandwidth product of 150MHz and a slew rate of 120V/µs while maintaining extremely high open loop gain (130dB Typ) and low offset voltage (300µV Typ). These specific

HA-2548 Applications

* such as signal conditioning, instrumentation, video/pulse amplifiers and buffers. For information on the military version of this device please refer to the

📥 Download Datasheet

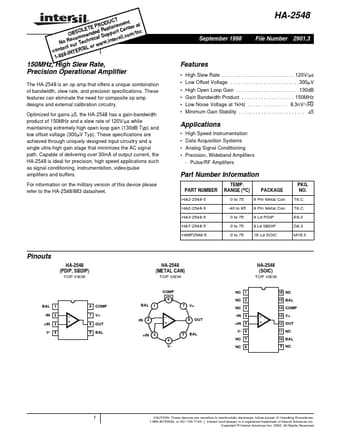

Preview of HA-2548 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HA-2548
Manufacturer
Intersil
File Size
727.91 KB
Datasheet
HA-2548-Intersil.pdf
Description
Precision Operational Amplifier
