HA-2546, Two Quadrant Analog Multiplier

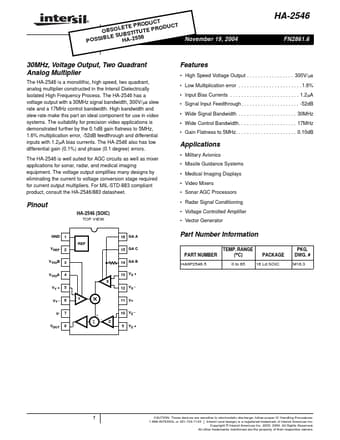

P® OSSIOBBDLSEaOtSaLUSEHBhTASeE-Te2PIt5TR5UO6TDEUPCRTODUCT November 19, 2004 HA-2546 FN2861.6 30MHz, Voltage Output, Two Quadrant Analog Multiplier.

datasheet Preview Page 1 from Datasheet4u.com

HA-2546-Intersil.pdf

HA-2546 Datasheet Preview — Preview of HA-2546 PDF

Datasheet Details

Part number:

HA-2546

Manufacturer:

Intersil

File Size:

825.52 KB

Description:

Two Quadrant Analog Multiplier

Features

* High Speed Voltage Output
* . . 300V/µs
* Low Multiplication error
* . . . 1.6%
* Input Bias Currents
* 1.2µA
* Signal Input Feedthrough

Applications

* is demonstrated further by the 0.1dB gain flatness to 5MHz, 1.6% multiplication error, -52dB feedthrough and differential inputs with 1.2µA bias currents. The HA-2546 also has low differential gain (0.1%) and phase (0.1 degree) errors. The HA-2546 is well suited for AGC circuits as well as mixer app
