HA-2544, Video Operational Amplifier

® c1No-8nO8taR8Dc-EItaNCOotTaOuBErMSSRThOMSeeLEIcLeEhNtTonDEriEcwaPDwlRRSwOuE.DipPnUpLteoCArrTCst iECl.MceonEmtNe/rTtsact July 2004 HA-2544 FN2900.6.

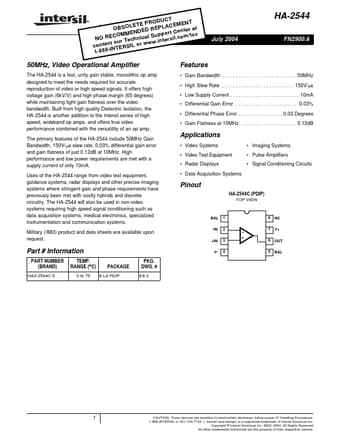

datasheet Preview Page 1 from Datasheet4u.com

HA-2544-Intersil.pdf

HA-2544 Datasheet Preview — Preview of HA-2544 PDF

Datasheet Details

Part number:

HA-2544

Manufacturer:

Intersil

File Size:

803.80 KB

Description:

Video Operational Amplifier

Features

* of the HA-2544 include 50MHz Gain Bandwidth, 150V/µs slew rate, 0.03% differential gain error and gain flatness of just 0.12dB at 10MHz. High performance and low power requirements are met with a supply current of only 10mA. Uses of the HA-2544 range from video test equipment, guidance systems, rada

Applications

* Video Systems
* Imaging Systems
* Video Test Equipment
* Pulse Amplifiers
* Radar Displays
* Signal Conditioning Circuits
* Data Acquisition Systems Pinout HA-2544C (PDIP) TOP VIEW BAL 1 -IN 2 - +IN 3 + V- 4 8 NC 7 V+ 6 OUT 5
