HA2-2522-2 - 20MHz/ High Slew Rate/ Uncompensated/ High Input Impedance/ Operational Amplifiers

HA2-2522-2 Description

HA-2520, HA-2522, HA-2525 Data Sheet September 1998 File Number 2894.3 20MHz, High Slew Rate, Uncompensated, High Input Impedance, Operational Amplifi.
only.

HA2-2522-2 Features

* High Slew Rate
* . . 120V/µs
* Fast Settling
* . 200ns
* Full Power Bandwidth
* . . . . 2MHz
* Gain Bandwidth (AV ≥ 3)

HA2-2522-2 Applications

* Data Acquisition Systems
* RF Amplifiers
* Video Amplifiers
* Signal Generators Pinouts HA-2520 (CERDIP) HA-2525 (PDIP, CERDIP, SOIC) TOP VIEW BAL -IN +IN 1 2 3 4 8 COMP V+ OUT BAL Ordering Information PART NUMBER (BRAND) HA2-2520-2 HA2-2522-2 HA2-2525-5 HA3-2525-5

📥 Download Datasheet

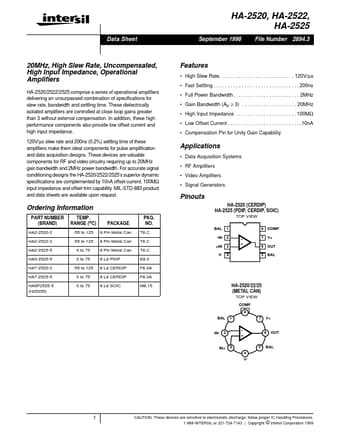

Preview of HA2-2522-2 PDF
