HC1-5504B-5

EIA/ITU PABX SLIC with 40mA Loop Feed

HC1-5504B-5 Features

* Pin for Pin Replacement for the HC-5504

* Capable of 5V or 12V (VB+) Operation

* Monolithic Integrated Device

* DI High Voltage Process

* Compatible With Worldwide PBX Performance Requirements

* Controlled Supply of Battery Feed Current for Short Loo

HC1-5504B-5 General Description

28 PIN PLCC 2 24 PIN DIP/SOIC 1 SYMBOL TIP DESCRIPTION An analog input connected to the TIP (more positive) side of the subscriber loop through a 150Ω feed resistor and a ring relay conta.

HC1-5504B-5 Datasheet (87.27 KB)

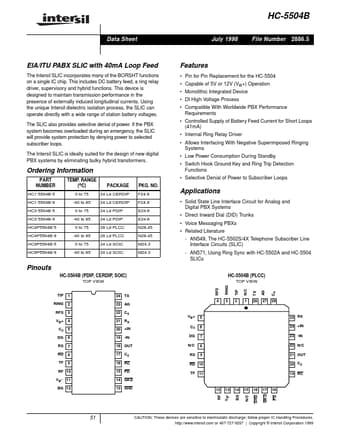

Preview of HC1-5504B-5 PDF
