HFA1205 - Video Operational Amplifier

HFA1205 Description

NROcTE1MTo-C8nRO8tEa8McC-IMtNODoETMuaNErMtDRaTEESeSNDIcLhDhReoEneEriDctPwaFLwlOASwRCu.ipENnpMtEeoEWrrsNt iDCTl.cEeEonSLmtIe5G/r2tN6saS3ct July 2004 .

HFA1205 Features

* Low Supply Current
* . . 5.8mA/Op Amp
* High Input Impedance
* . . . 2MΩ
* Wide -3dB Bandwidth (AV = +2)
* . . . 425MHz
* Very Fast Slew Rate
* . 1350V/μs

HFA1205 Applications

* The excellent gain flatness and differential gain/phase performance make these amplifiers well suited for component or composite video applications. Video performance is maintained even when driving a back terminated cable (RL = 150Ω), and degrades only slightly when driving two back terminated cab

📥 Download Datasheet

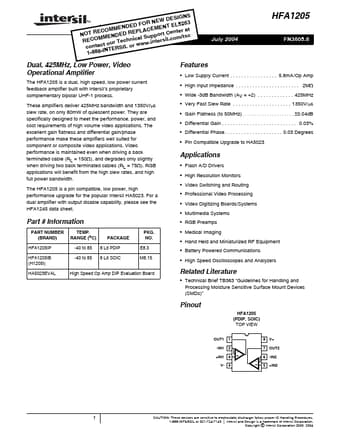

Preview of HFA1205 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HFA1205
Manufacturer
Intersil Corporation
File Size
631.99 KB
Datasheet
HFA1205_IntersilCorporation.pdf
Description
Video Operational Amplifier
