Datasheet Details
- Part number
- HFA100MD60C
- Manufacturer
- International Rectifier
- File Size
- 309.58 KB
- Datasheet
- HFA100MD60C_InternationalRectifier.pdf
- Description
- HEXFRED Ultrafast/ Soft Recovery Diode
HFA100MD60C Description

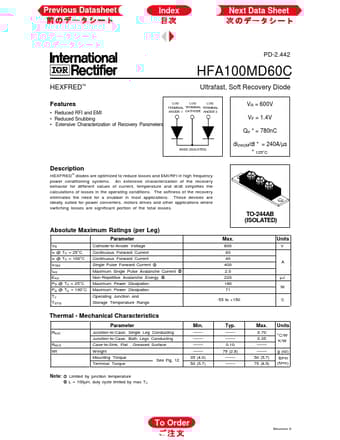

Previous Datasheet Index Next Data Sheet PD-2.442 HFA100MD60C HEXFRED .
HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems.
HFA100MD60C Features
* Reduced RFI and EMI
* Reduced Snubbing
* Extensive Characterization of Recovery Parameters
TM
Ultrafast, Soft Recovery Diode
LUG LUG LUG TERMINAL TERMINAL TERMINAL ANODE 1 CATHODE ANODE 2
VR = 600V VF = 1.4V Qrr
* = 780nC
BASE (ISOLATED)
di(rec)M/dt
* = 240A/µs
HFA100MD60C Applications
* These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. TM
TO-244AB (ISOLATED) Absolute Maximum Ratings (per Leg)
Parameter
VR IF @ TC = 25°C IF @ TC = 100°C IFSM IAS EAS PD @ TC = 25°C PD @ TC
