HFA140MD60D

Soft Recovery Diode

HFA140MD60D Features

* • Reduced RFI and EMI • Reduced Snubbing • Extensive Characterization of Recovery Parameters TM Ultrafast, Soft Recovery Diode Anode 1 AC Cathode 2 Isolated Base VR = 600V VF(typ.)‚ = 1.2V IF(AV) = 140A Qrr(typ.) = 360nC IRRM(typ.) = 8.0A trr(typ.) = 35ns di(rec)M/dt (typ.)‚ = 230A/µs Descriptio

HFA140MD60D General Description

HEXFRED diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and di/dt simplifies the calculations of losses in the operating conditions. The softness of the.

HFA140MD60D Datasheet (309.45 KB)

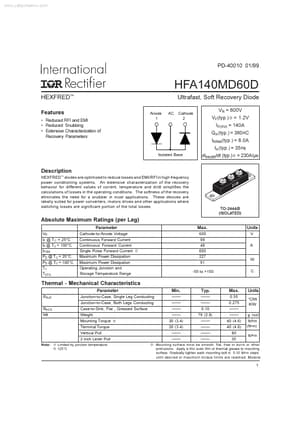

Preview of HFA140MD60D PDF

Datasheet Details

Part number:

HFA140MD60D

Manufacturer:

International Rectifier

File Size:

309.45 KB

Description:

Soft recovery diode.
